160645-2
Manufacturer:
TE Connectivity
Mfr.Part #:
160645-2
Datasheet:
Description:

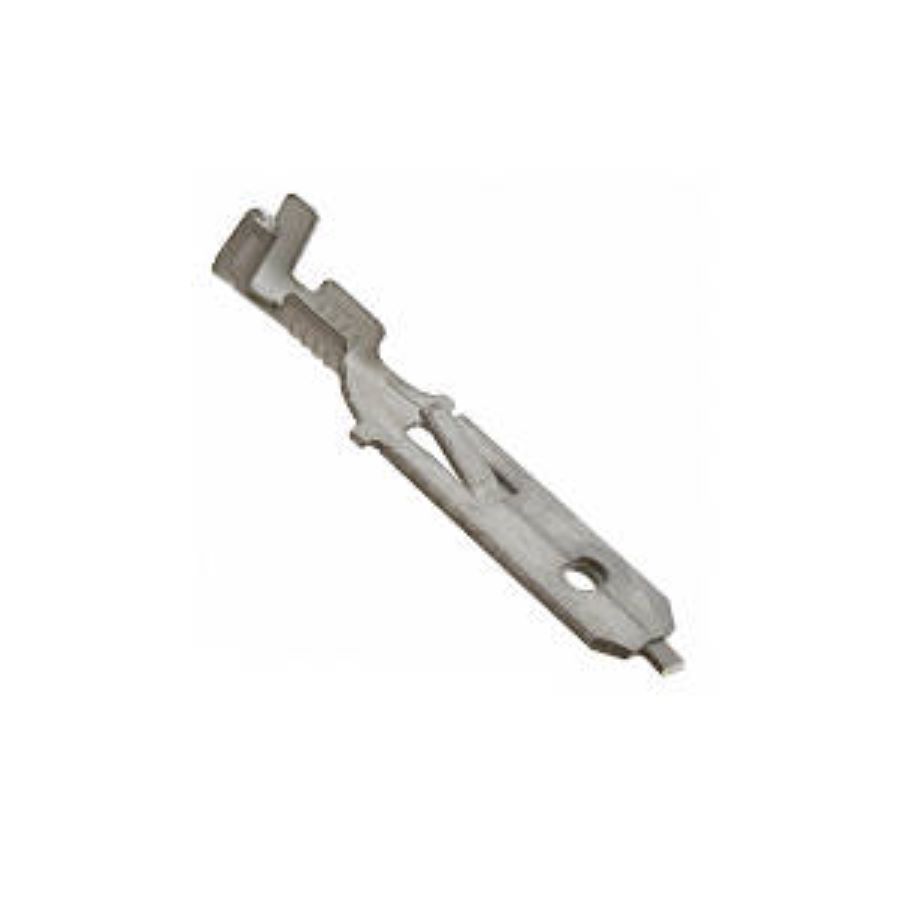

Terminals Free Hanging 18 AWG Male
| Parameter | Value |
|---|---|
| Length | 28 mm |
| Termination | Tab |
| Material | Brass |
| Packaging | Reel |
| Depth | 7.4 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Type | Tab |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Gender | Male |
| ELV | Compliant |
| Body Material | Brass |
| Tab Width | 6.35 mm |
| Wire/Cable Diameter | 3.175 mm |
| Wire/Cable Gauge | 18 AWG |
| Insulation | Non-Insulated |
| Wire Gauge (Max) | 18 AWG |
| Wire Gauge (Min) | 22 AWG |
| Plating | Tin |
| Termination Style | Crimp |
| Insulation Diameter | 3.2 mm |
| Body Plating | Tin |
| Plating Thickness | 1 mm |
| Insulated Wire Support | Yes |
| Mating Tab Width | 6.35 mm |
| Tab Length | 6.35 mm |
| Tab Thickness | 812.8 µm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Sealable | No |
| Stud Size | 6.35 mm x 0.81 mm |
Stock: 4944
Distributors
pcbx
pcbxUnit Price$0.50224
Ext.Price$0.50224
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.50224 | $0.50224 |
| 10 | $0.25112 | $2.51120 |
| 50 | $0.19317 | $9.65850 |
| 100 | $0.14859 | $14.85900 |
| 500 | $0.11430 | $57.15000 |
| 1000 | $0.08792 | $87.92000 |
| 3000 | $0.06763 | $202.89000 |
| 5000 | $0.06446 | $322.30000 |
| 10000 | $0.06143 | $614.30000 |
| 30000 | $0.05855 | $1756.50000 |
| 50000 | $0.05580 | $2790.00000 |
| 100000 | $0.05318 | $5318.00000 |
